the Easy framework for Agile development with Oracle WebCenter Sites
In this section we will see how to create content specific for the home page.
In particular we will add a title, an image, a text and a reference to another page.
We will see then how to render those attributes.
Here is described, step by step, how to create an attribute named MyTitle
.

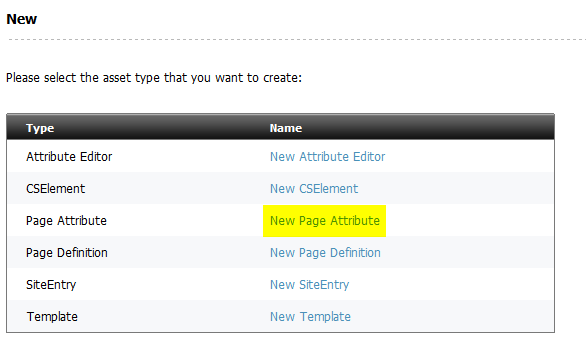

First go in the administrative interface, click on New and then click on New Page Attribute

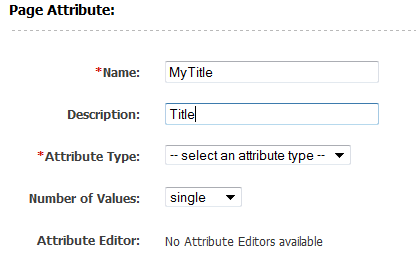

Create a new Page Attribute named MyTitle
, but use the name without the prefix in the description (so the user won't see the prefix). Select string
as attribute type, and single
as number of values.

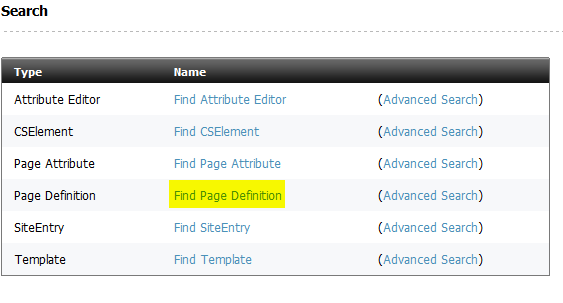

Now search for the Page Definition we created before. In the administrative interface, click on Find
then Find Page Definition
.

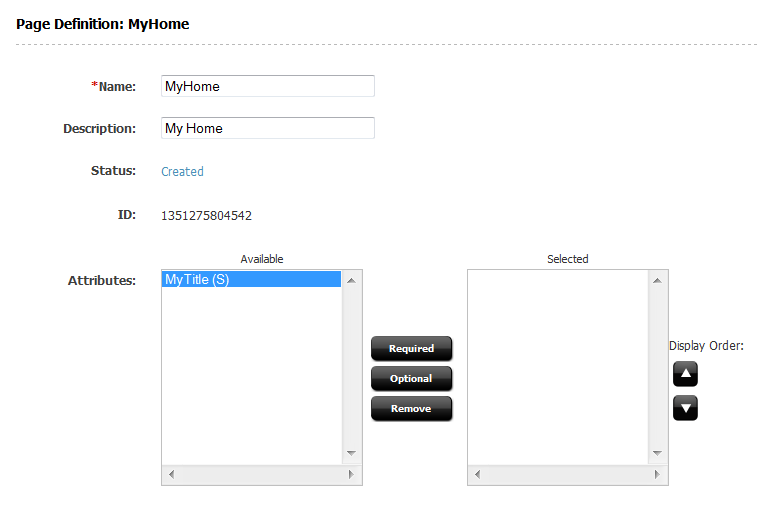

Search for the MyHome
page definition, edit it and add as a required field the newly created attribute MyTitle
.
Now, create an attribute editor named MyCKEditor
using this xml file:
<PRESENTATIONOBJECT>
<CKEDITOR/>
</PRESENTATIONOBJECT>
Following the same procedure as before, create the f../d\i/g\snap4286.pnglowing attributes:
text
, single, attribute editor MyCKEditor
blob
, singleasset
, multipe, for asset type Page
, asset subtypes Any
then add them to the Page Definition MyHome
(MyText
should be mandatory, MyImage
and MyRelated
optional).

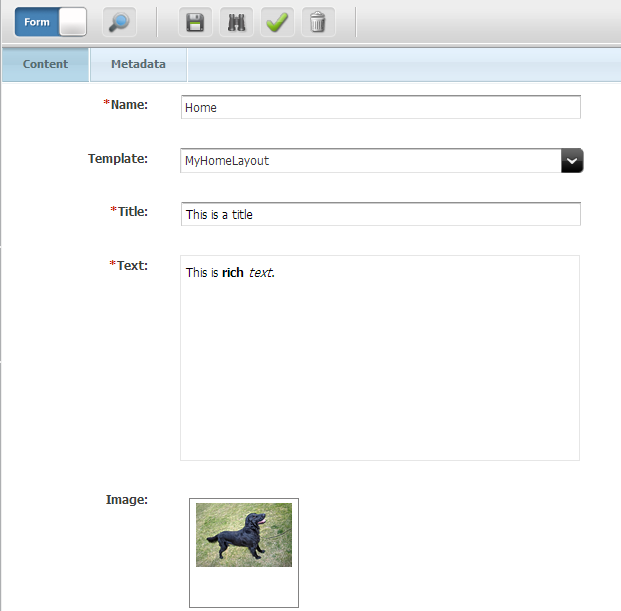

Finally go in the contributor interface, and edit the content.
You should see a form like this that you can fill with values to be used later.
Each template has a corresponding class generated by the code generator. This class extends wcs.java.Element
and must implement the method apply
whose standard structure is
@Override
public String apply(Env e) {
Asset a = e.getAsset()
Picker p = Picker.load("...")
/* replacements here */
return p.html()
}
Basically the apply
method receive an Env
that is a facade to access all the Sites enviroment. A key method is e.getAsset()
that will return an asset Asset
instance. The Asset
instance is the key since it allows to access to the attributes, either single and multiple. Note that all the multiple items are typically indexed using the getRange
method that produces a iterator of integer.
There are other methods and features in the Env
, most notably it allows to access to variables (e.getString("List"
) and lists (e.getString("List", index, "field"
).
For a quick introductory example a common usage is to pick a template, select the content then replace the title with the attribute title. Here a.getString("Title")
returns the title attribute but it will be explained next. The typical Picker usage is then:
// load the given template and then restrict to the element with id=body
Picker p = Picker.load("/site/template.html", "#body");
// replace the html of the title with the actual title attribute
p.replace("#title", a.getString("Title");
// return the html
return p.html();
Note that picker uses a fluent interface, and almost all the methods returns itself so the precedent example can be written:
return Picker.load("/site/template.html", "#body")
.replace("#title", a.getString("Title").htlm();
Multiple attributes are rendered using this code pattern:
for(int i: a.getRange("Title")) {
String x = a.getString("Title", i));
// use x
}
At attribute of type blob can be rendered using the a.getBlobUrl("Blob")
. Here is an example to render the image using an html tag:
<img id="image-main">
with this code:
String image = a.getBlobUrl("Image");
if (image == null)
html.remove("#image-main");
else
html.attr("#image-main", "src", image);
When you have an attribute of type asset, you can render the linked template loading the template with a.getAsset("Related","Page")
then invoking the template with a.call("DmSummary")
. Note that:
a.getAsset
requires you specify the type of the linked asset, since it is not stored in the attribute (only the id is)The standard code to render a linked asset is (assuming the asset is of type Page
using the DmSummary
template) is then:
a.getAsset("Related", "Page").call("DmSummary")
